ss 01
/
pattern 12
/
P9X 11 ssp
expression · pattern × system
EXP-011 / SS-01 / 2025
P9-X 11ss
solid surface panels
pattern 12 + durasein + 3-axis cnc = P9X 11
30″ × 120″
½″ thick
Interior
Backlit capable
Thermoform capable
Class A

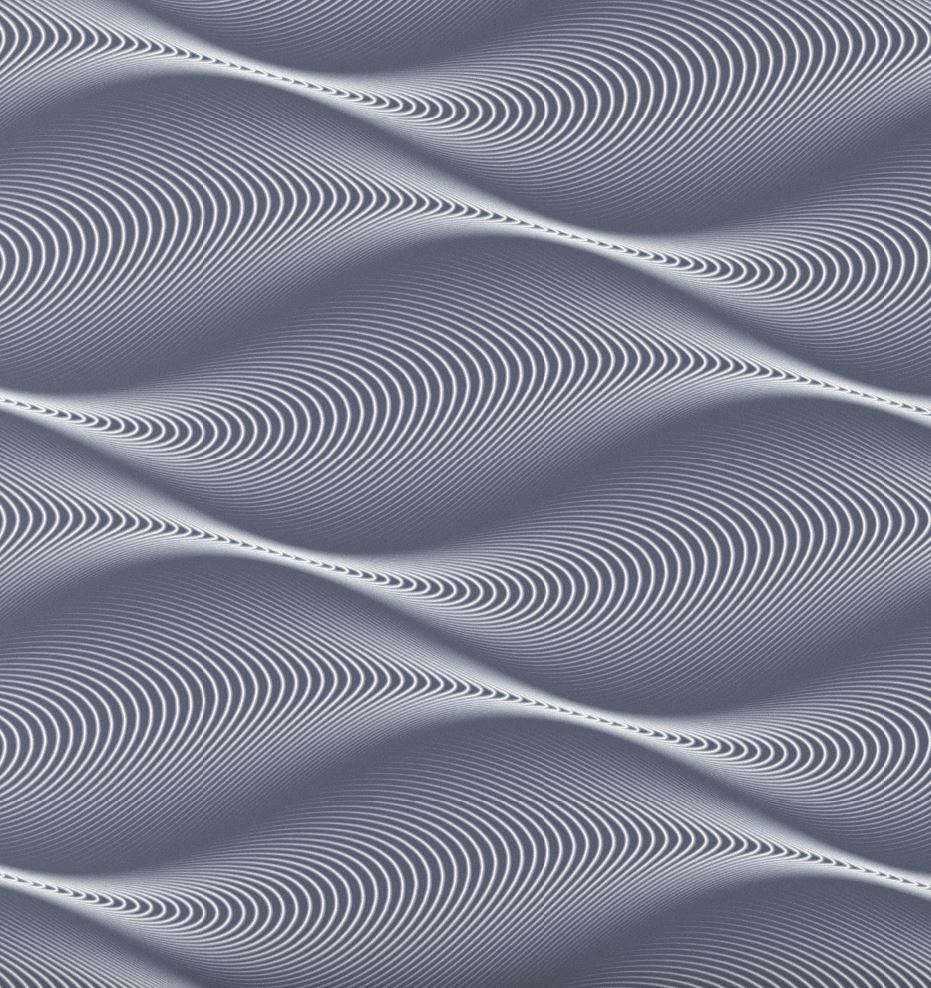

geometry / pattern 12
01
specifications
02
finishes
03
integrations
04
downloads
05
related
(01)
Panel system
dimensional + structural
Panel size
30″ × 120″
762mm × 3048mm
Thickness
½″
12.7mm
Repeat unit
Pattern-dependent
See spec sheet
Seam type
Butt joint
Monolithic appearance
Seam alignment
Continuous
Pattern repeat across seams
Panel weight
≈ 3.5 lbs/sq ft
Structural submittal value
(02)
Performance
testing + ratings
Flammability
ASTM E84 · Class A
NRC rating
N/A
Solid surface
Impact resistance
High
Homogeneous body
Moisture resistance
Non-porous
Sealed surface
Exterior rated
No
Interior only
Repairable
Yes
Field sanding + refinishing
Sustainability + certifications
GREENGUARD
NSF/ANSI 51
LEED v4 compliant
VOC free
Recycled content — varies by color
(03)
Fabrication logic
CNC + tooling
Method
3-axis CNC
Machining
Cutter profiles
Ball nose / V-bit / flat
Pattern-dependent
Max relief depth
⅜″
Leaving ⅛″ backing
Panelization logic
Tile-fit
Seams register to repeat grid
(04)
Installation behavior
connection + scheduling
Connection method
Mechanical + adhesive
Color-matched
Wall substrate
Solid blocking or steel framing
Thermoform radius
Min 6″
Inside bend radius
Lead time
6–10 weeks
Project scope dependent
Special capabilities
Backlit
Thermoform bending
Seamless joints
Custom cutouts
Exterior
Acoustic
